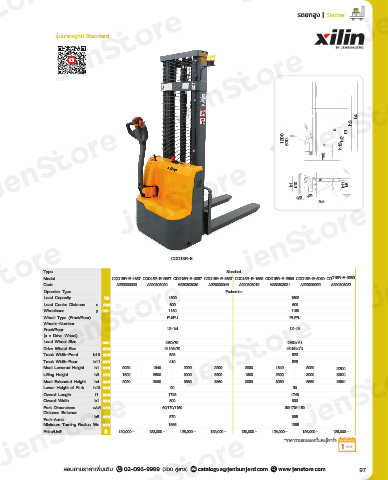

Page 97 - Industrial 2025

ู
รถยกสง | Stacker

ร่�นมาตรฐาน Standard

h3 h4
s h1
1300 670 x h13 h2

l2 n2
l1

e
b1 b10 b11 b5
a/2 Wa
Ast

CDD15R-E
Type Standard
Model CDD15R-E-1657 CDD15R-E-2557 CDD15R-E-3057 CDD15R-E-3357 CDD15R-E-1669 CDD15R-E-2569 CDD15R-E-3069 CDD15R-E-3369
Code A220303033 A220303020 A220303030 A220303049 A220303019 A220303021 A220303022 A220303037
Operator Type Pedestrian
Load Capacity kg 1500 1500
Load Centre Distance c mm 600 600
Wheelbase y mm 1180 1180
Wheel Type (Front/Rear) PU/PU PU/PU
Wheels-Number
Front/Rear 1X-1/4 1X-1/4
(x = Drive Wheel)
Load Wheel Size mm Ø80x70 Ø80x70
Drive Wheel Size mm Ø195x70 Ø195x70
Track Width-Front b10 mm 523 523
Track Width-Rear b11 mm 410 525
Mast Lowered Height h1 mm 2090 1840 2090 2200 2090 1840 2090 2200
Lifting Height h3 mm 1600 2500 3000 3300 1600 2500 3000 3300
Mast Extended Height h4 mm 2090 3060 3560 3860 2090 3060 3560 3860
Lower Height of Fork h13 mm 90 90
Overall Length l1 mm 1748 1748
Overall Width b1 mm 800 800
Fork Dimensions s/e/l mm 60/170/1150 60/170/1150
Distance Between
Fork-Arms b5 mm 570 695
Minimum Turning Radius Wa mm 1365 1365
Price/Unit* ฿ 120,000.- 123,000.- 126,000.- 129,000.- 120,000.- 123,000.- 126,000.- 129,000.-
*ราคารวมแบตเตอรี่และตู้ชาร์จ

่
