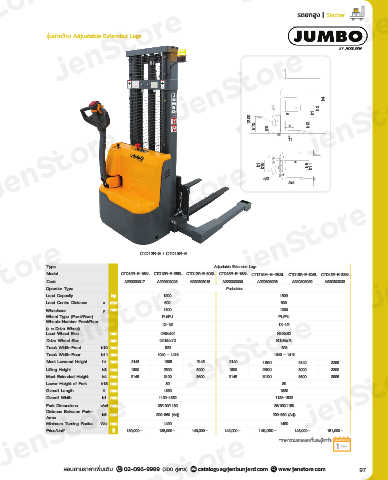

Page 97 - Industrial 2024

ู
รถยกสง | Stacker

ร่�นขากว้้าง Adjustable Extended Legs

h4
h1 h3
s
670 1300 x h13
m2
l2 y
l1

e
b1 b10 b5 b11
a/2
Ast

CTD12R-E / CTD15R-E

Type Adjustable Extended Legs
Model CTD12R-E-16SL CTD12R-E-25SL CTD12R-E-30SL CTD15R-E-16SL CTD15R-E-25SL CTD15R-E-30SL CTD15R-E-33SL
Code A220303017 A220303008 A220303018 A220303006 A220303028 A220303029 A220303038
Operator Type Pedestrian
Load Capacity kg 1200 1500
Load Centre Distance c mm 600 600
Wheelbase y mm 1300 1300
Wheel Type (Front/Rear) PU/PU PU/PU
Wheels-Number Front/Rear 1X-1/2 1X-1/2
(x = Drive Wheel)
Load Wheel Size mm Ø98x82 Ø98x82
Drive Wheel Size mm Ø195x70 Ø195x70
Track Width-Front b10 mm 523 523
Track Width-Rear b11 mm 1040 - 1416 1040 - 1416
Mast Lowered Height h1 mm 2145 1895 2145 2140 1890 2140 2295
Lifting Height h3 mm 1600 2500 3000 1600 2500 3000 3300
Mast Extended Height h4 mm 2145 3100 3600 2145 3100 3600 3995
Lower Height of Fork h13 mm 80 80
Overall Length l1 mm 1830 1830
Overall Width b1 mm 1132-1532 1132-1532
Fork Dimensions s/e/l mm 35/100/1150 35/100/1150
Distance Between Fork-
Arms b5 mm 200-860 (Adj) 200-860 (Adj)
Minimum Turning Radius Wa mm 1490 1490
Price/Unit* ฿ 132,000.- 136,000.- 140,000.- 142,000.- 145,000.- 148,000.- 151,000.-
*ราคารวมแบตเตอร่�และต้�ชาร์จ

่
่
สอบถามราคาเพิ่�มเติม 02-096-9999 (200 ค่�สาย) [email protected] www.jenstore.com 97
